Hi! Today we have a very shallow post. We’ll go over the main “wrappers” around dot-product attention and we’ll call it a day 🙃 The main purpose is for me to have a repository of these structures that aligns wth my mental model of them¹.

¹ So don’t need to exert a trifle of thought by making sense of someone else’s diagrams.

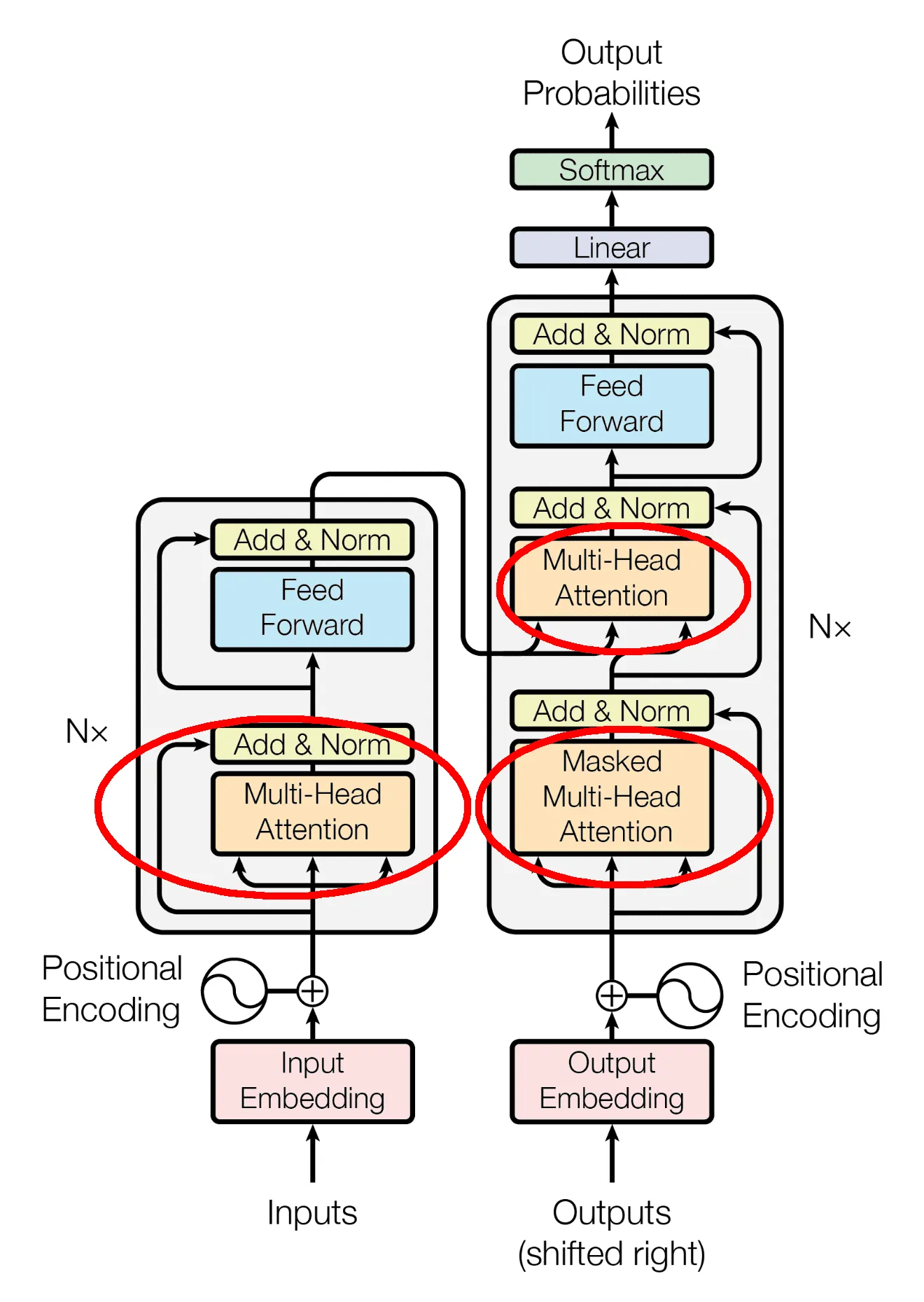

This post focusses on the attention parts of the transformer (circled parts).

Dot-Product Attention

At the core of the circled multi-ehad attention layers we find the dot-product attention. I talk extensively² about this in the sequence post. Here you can find an over-simplified diagram of how it works³:

² Probably too extensively

³ I focus on cross-attention because it is more general.

Train-time

The formula goes like this: \[ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{ Q K^T }{\sqrt{f}}\right)V \]

Which can be represented as:

1. We compute the attention matrix: Each row indicates how related its corresponding query is to each key.

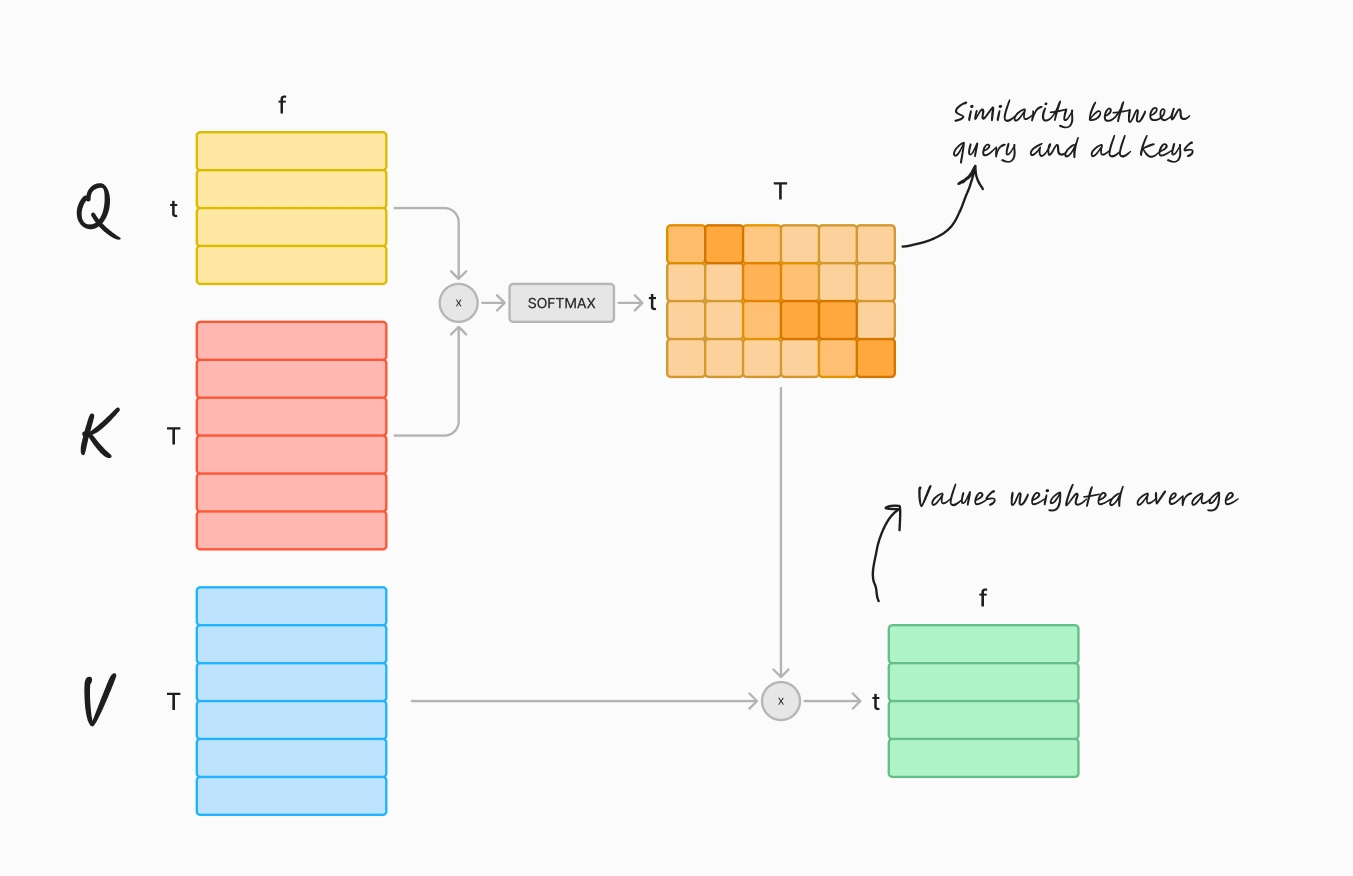

2. Each row linearly combines the values according to the previous correlations. Image by author.

Why do we divide by \(\sqrt{d}\) ?

Let’s assume Q, K are distributed normally:

\[ Q_{t_q, i}, K_{t_k, j} \sim \mathcal{N} (0, 1) \]

We then have that:

\[ \text{var} \left( Q_{t_q, i} \cdot K_{t_k, j} \right) = 1 \]

Thus, when computing the dot product of \(\vec{Q_{t_q}} \cdot \vec{K{t_q}}\), the variance grows linearly:

\[ \text{var} \left( \sum_{i=1:f} Q_{t_q, i} \cdot K_{t_k, i} \right) = f \]

Meaning we get a \(\text{std} \vec{Q_{t_q}} \cdot \vec{K{t_q}} = \sqrt{f}\).

This means that as the embedding dimension increases, the attention matrix values get typically larger (in absolute value). For instance, if \(f = 1024\), we have that \(\text{std} \approx 32\). Meaning typical logits lie in the \([-32, 32]\) range.

This dependence on \(f\) can be problematic when applying the \(\text{softmax}\) operation: very large values dominate the exponential and collapse the rest: \(e^{32} \approx 10^{14}\). Making the softmax become a one-hot encoder (and gradient killer). Dividing by the \(\text{std}\) significantly reduces this problem :)

Inference-time

This one is for self-attn but the idea is the same.

1. We project the input into `q, k, v`
2. We compare `q` with all previous `k`’s (cached)
3. We do the weighted average of all previous `v`’s (also cached).

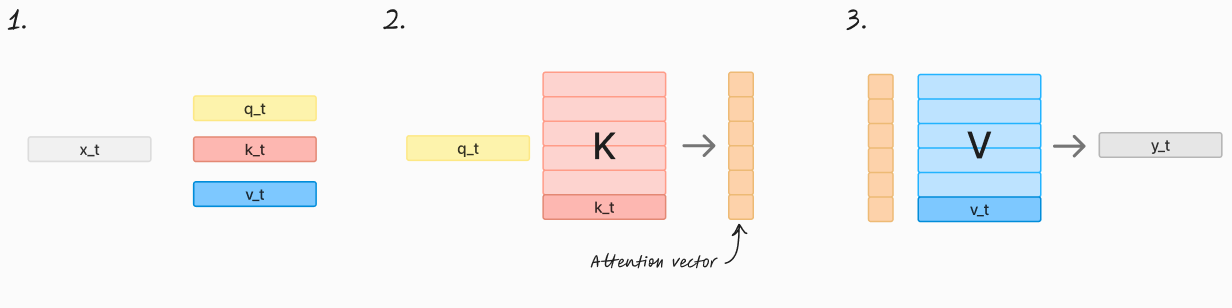

Notice it is the same as before but having only 1 query. Image by author.

Attention extensions

Here I go over the most influential variants of the dot-product attention.

2017. MHA: Multi-Head Attention

The main motivation is to broadcast the dot-product attention operation in parallel so we can attend to different things at the same time.

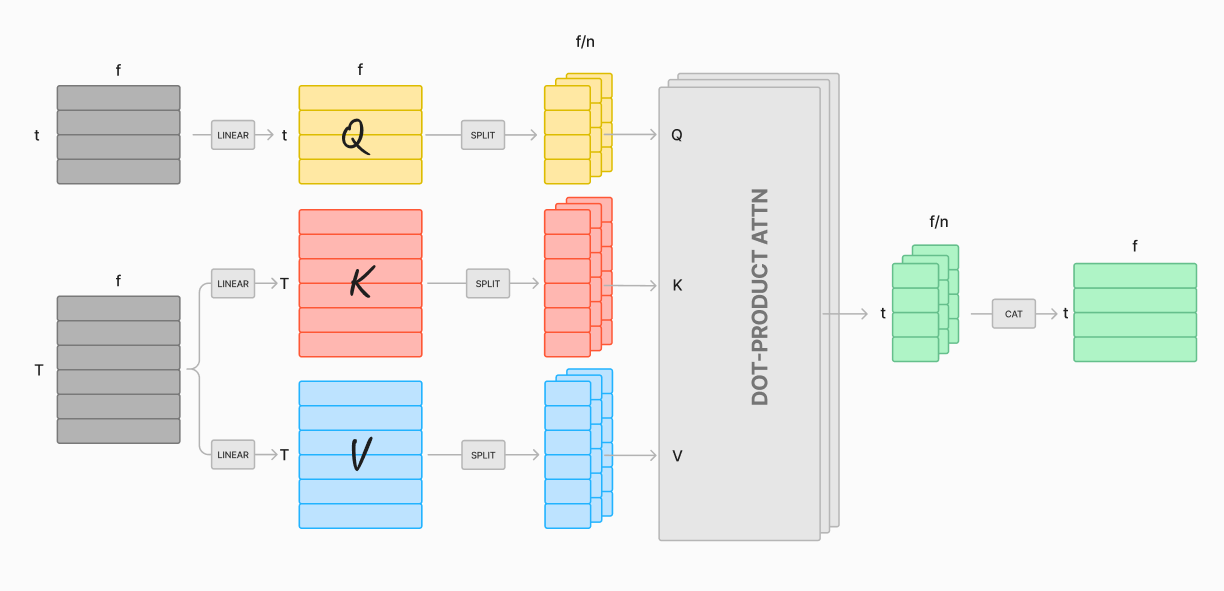

After projecting, we simply slice `Q, K, V` and broadcast the previous operation. Image by author.

2019. MQA: Multi-Query Attention

I’d call this single KV-attention rather than multi-query, but whatever. MQA’s main idea⁴ is to reduce memory footprint by reducing the dimensionality of the KV-cache⁵.

⁴ And all the following variants.

⁵ To learn more how to compress in the temporal dimension, check out my sequence modelling post

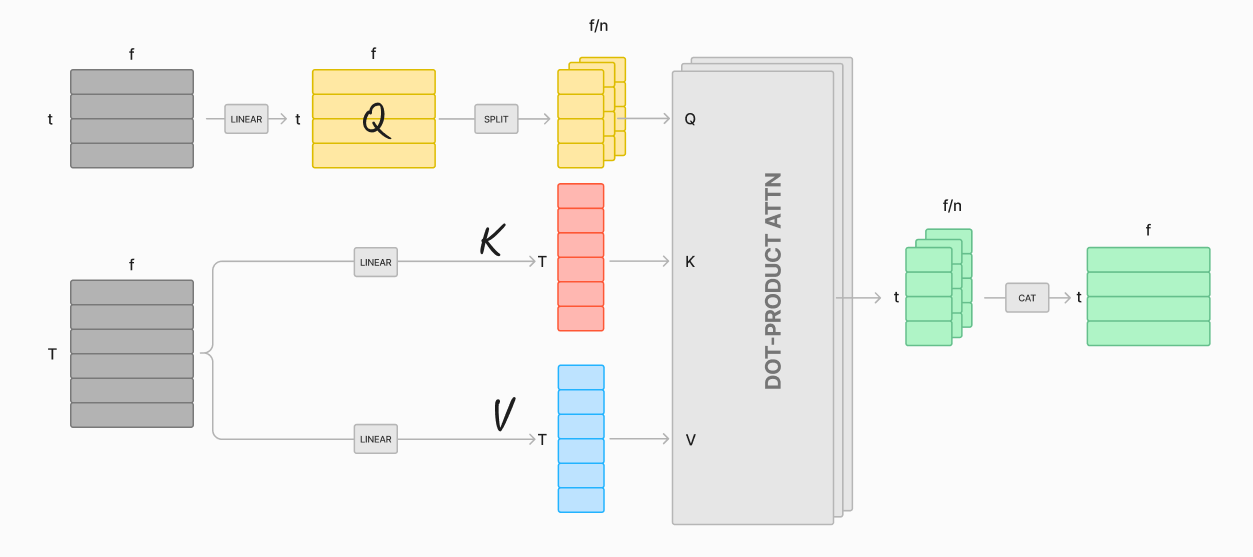

K, V are directly projected into a \(\frac{f}{n}\) dimensional space, while we still project Q into \(f\) dimension and split into different heads. Image by author.

2023. GQA: Grouped-Query Attention

GQA is a middle-ground between multi-head and multi-query. We still have n heads for queries, but we split the KV-cache into g groups. Thus, we have n/g heads per group.

In this example `n=4` heads and `g=2` groups. Image by author.

Top-view of those diagrams

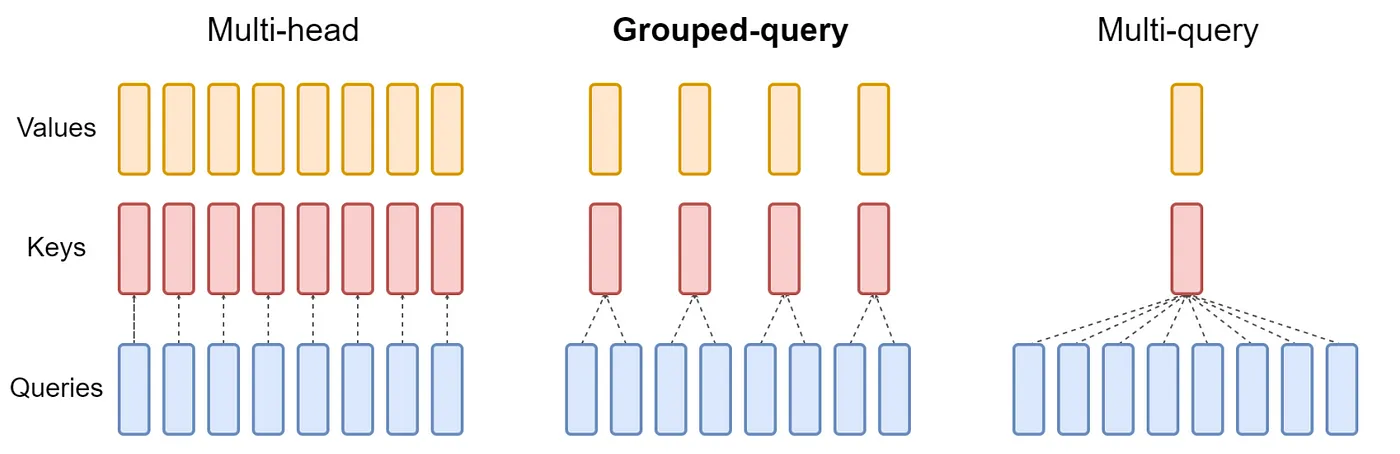

I made the poor decision of swapping Q and V colors. I am not repeating them. Figure from GQA paper.

2024. MHLA: Multi-Head Latent Attention

DeepSeek-v2 paper presents a variant that attempts to decrease memory footprint using two different techniques

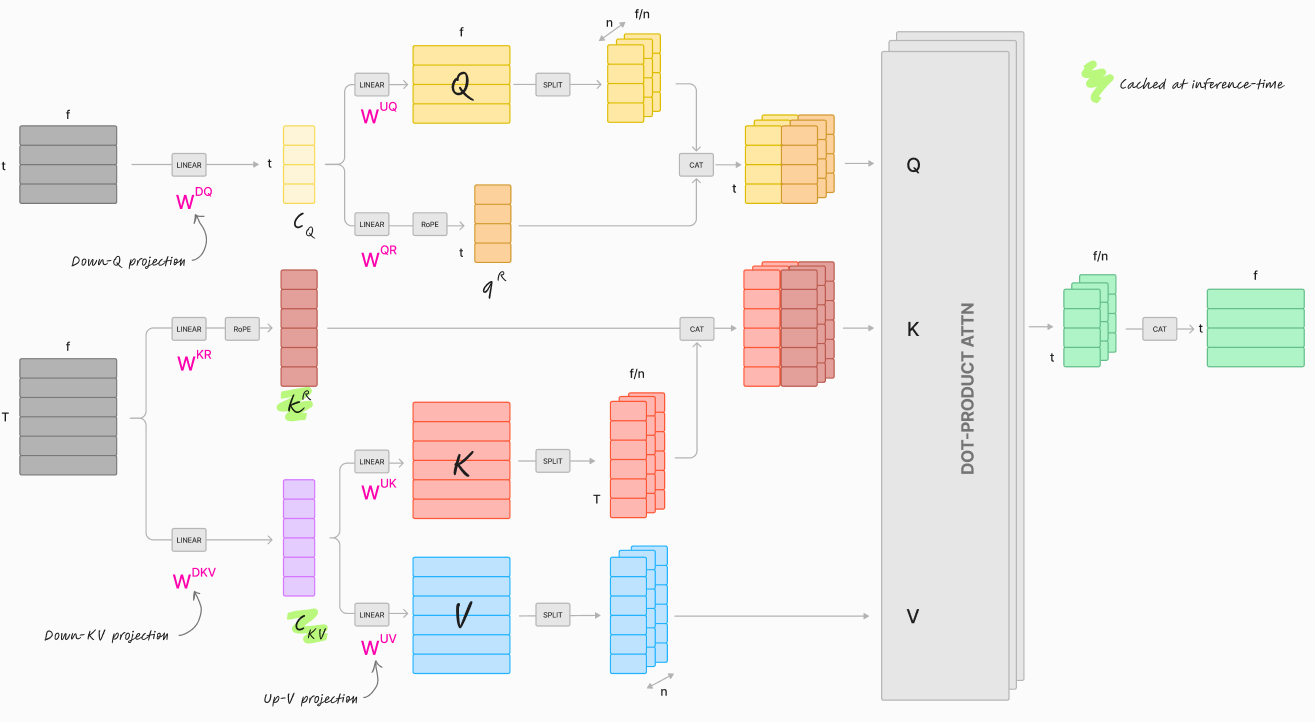

Linearly down-projecting the input into a lower-dimensional space, from which one can recover Q and K. The main advantage is that we can just cache this projection \(c_{KV}\) which is much smaller than the naive complete KV-cache at inference-time.
It applies the same principle for Q to save memory at train-time.

It also uses RoPE, which I talk about in my positional encoding post.
